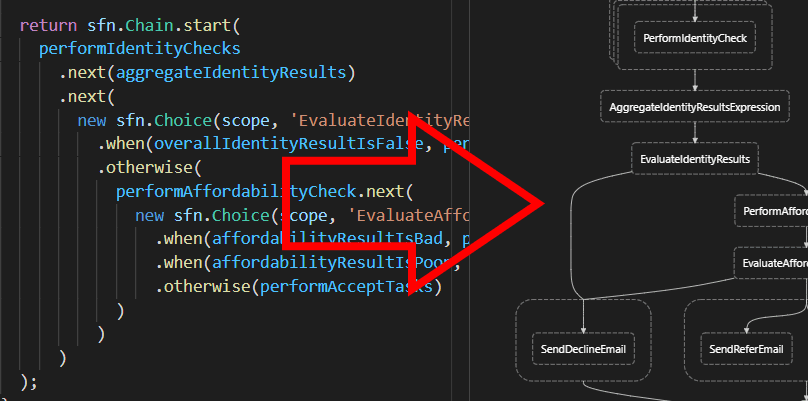

Visualising a CDK State Machine using a custom Construct

Visualising a CDK State Machine using a custom Construct

We get there in the end :)

Previously, I went through the process of converting a JSON-based step function using SAM, to a code-based step function using CDK. One of the challenges I faced, was visualising the final result. My workaround was to use the AWS Toolkit to download the deployed definition and render that to a graph. In this post, I go through the process of create a CDK construct that allows us to have the definition generated locally.

Edit: The resulting code is now available as an npm package.

Given that CDK works by generating CloudFormation, it stood to reason that the CDK must have functionality to render the state machine definitions to a format that could be rendered by the AWS Toolkit. A search of the documentation revealed that the StateGraph class has a toGraphJson method which promises to:

Return the Amazon States Language JSON for this graph.

All very promising, so armed with this information, I created my first attempt:

export default class StateMachineWithGraph extends sfn.StateMachine {
  //
  readonly graphJson: string;

  constructor(scope: cdk.Construct, id: string, props: sfn.StateMachineProps) {
    //
    super(scope, id, props);

    const stateGraph = new sfn.StateGraph(
      props.definition.startState,
      'Temporary graph to render to JSON'
    );

    this.graphJson = (stateGraph.toGraphJson() as unknown) as string;
  }
}

I had to create a StateGraph instance, as I could not see how to access this internal class in the base StateMachine. Still, it all looked very plausible. I amended my Stack to use the construct (a drop-in replacement) and added a call to a new writeGraphJson method to write out the result to a file.

private static writeGraphJson(stateMachine: StateMachineWithGraph): void {
  //
  const stateMachinePath = path.join(__dirname, 'stateMachines');

  if (!fs.existsSync(stateMachinePath)) fs.mkdirSync(stateMachinePath);

  fs.writeFileSync(
    path.join(stateMachinePath, `${stateMachine.node.id}.asl.json`),
    stateMachine.graphJson
  );
}

My hopes were high, so ran cdk synth to exercise the code. The result, as often happens in software, was failure:

Error: Trying to use state 'Pass' in Temporary graph to render to JSON (Pass), but is already in State Machine Test definition (Pass). Every state can only be used in one graph.

The problem is, as the error explains, that a state can only be part of a single graph and we are adding our states to multiple ones for the purposes of rendering. My solution, to replace the definition property with an instance of the following function that allows the states to be generated multiple times.

export interface StateMachineWithGraphProps extends Omit<StateMachineProps, 'definition'> {
  getDefinition: (scope: cdk.Construct) => sfn.IChainable;
}

Here I am using the Omit helper type to selectively replace the definition property. With this interface, I amended the construct to call the new function twice.

The first call is with the construct scope, and provides the definition for the base construct. For the second call, we supply a new Stack as a separate scope.

export default class StateMachineWithGraph extends sfn.StateMachine {
  //
  readonly graphJson: string;

  constructor(scope: cdk.Construct, id: string, props: StateMachineWithGraphProps) {
    //
    super(scope, id, {
      ...props,
      definition: props.getDefinition(scope),
    });

    const stateGraph = new sfn.StateGraph(
      props.getDefinition(new cdk.Stack()).startState,
      'Temporary graph to render to JSON'
    );

    this.graphJson = (stateGraph.toGraphJson() as unknown) as string;
  }
}

This change did mean a change to the original Stack, as we now need to supply a function that generates a definition, rather than definition itself.

const processApplicationStateMachine = new StateMachineWithGraph(
  this,
  'ProcessApplicationStateMachine',
  {
    getDefinition: (definitionScope): sfn.IChainable =>
      sfn.Chain.start(
        performIdentityChecks
          .next(aggregateIdentityResults)
          .next(
            new sfn.Choice(definitionScope, 'EvaluateIdentityResults')
              .when(overallIdentityResultIsFalse, performDeclineTasks)
              .otherwise(
                performAffordabilityCheck.next(
                  new sfn.Choice(definitionScope, 'EvaluateAffordabilityResult')
                    .when(affordabilityResultIsBad, performDeclineTasks)
                    .when(affordabilityResultIsPoor, performReferTasks)
                    .otherwise(performAcceptTasks)
                )
              )
          )
      ),
  }
);

Once more, I tried cdk synth and once more found failure:

Error: SingletonFunction at 'AggregateIdentityResultsExpression/EvalFunction' should be created in the scope of a Stack, but no Stack found

I was pretty sure it was being created in the scope of a Stack, but it did strike me that it wasn't being created in the same scope as the definition. Given this, I moved it into the definition function.

const processApplicationStateMachine = new StateMachineWithGraph(
  this,
  'ProcessApplicationStateMachine',
  {
    getDefinition: (definitionScope): sfn.IChainable => {
      //
      const aggregateIdentityResults = new sfnTasks.EvaluateExpression(
        definitionScope,
        'AggregateIdentityResultsExpression',
        {
          expression: '($.identityResults).every((r) => r.success)',
          resultPath: '$.overallIdentityResult',
        }
      );

      return sfn.Chain.start(
        performIdentityChecks
          .next(aggregateIdentityResults)
          ...

Success, at least in terms of a new error message:

Error: State 'PerformIdentityChecks' already has a next state

I now kicked myself, as I should have guessed that all the states need to be created in the same scope as the definition. The logical outcome of this was to create a new method that took a scope, created the states, and then returned the definition:

private getProcessApplicationDefinition(scope: cdk.Construct): sfn.IChainable

This resulted in the rather clean result below:

const processApplicationStateMachine = new StateMachineWithGraph(
  this,
  'ProcessApplicationStateMachine',
  {
    getDefinition: (definitionScope): sfn.IChainable =>
      this.getProcessApplicationDefinition(definitionScope),
  }
);

Surely success would be ours now. A quick cdk synth revealed that this was not the case:

TypeError [ERR_INVALID_ARG_TYPE]: The "data" argument must be of type string or an instance of Buffer, TypedArray, or DataView. Received an instance of Object
    at Object.writeFileSync (fs.js:1429:5)

The reason for this is that, rather annoyingly, the toGraphJson method does not actually return JSON. To get the JSON, we need to do the following:

this.graphJson = JSON.stringify(stateGraph.toGraphJson(), null, 2);

A quick spin of cdk synth and - lo and behold - we have the following renderable result:

{
  "StartAt": "PerformIdentityChecks",
  "States": {
    "PerformIdentityChecks": {
      "Type": "Map",
      "ResultPath": "$.identityResults",
      "Next": "AggregateIdentityResultsExpression",
      "InputPath": "$.application",
      "Iterator": {
        "StartAt": "PerformIdentityCheck",
        "States": {
          "PerformIdentityCheck": {
            "End": true,
            "Retry": [...

Now with this construct, we can automatically generate the graph JSON whenever the stack is synthesised or deployed. The code for this post can be found on GitHub here.

As I mentioned previously, I am not overly keen on the readability of state machine definitions in CDK. Having a visual graph certainly helps in this, but I have a much more radical idea to improve things. That is subject for another post.

Edit: The StateMachineWithGraph component is now available on npm.
